Pipe Marker

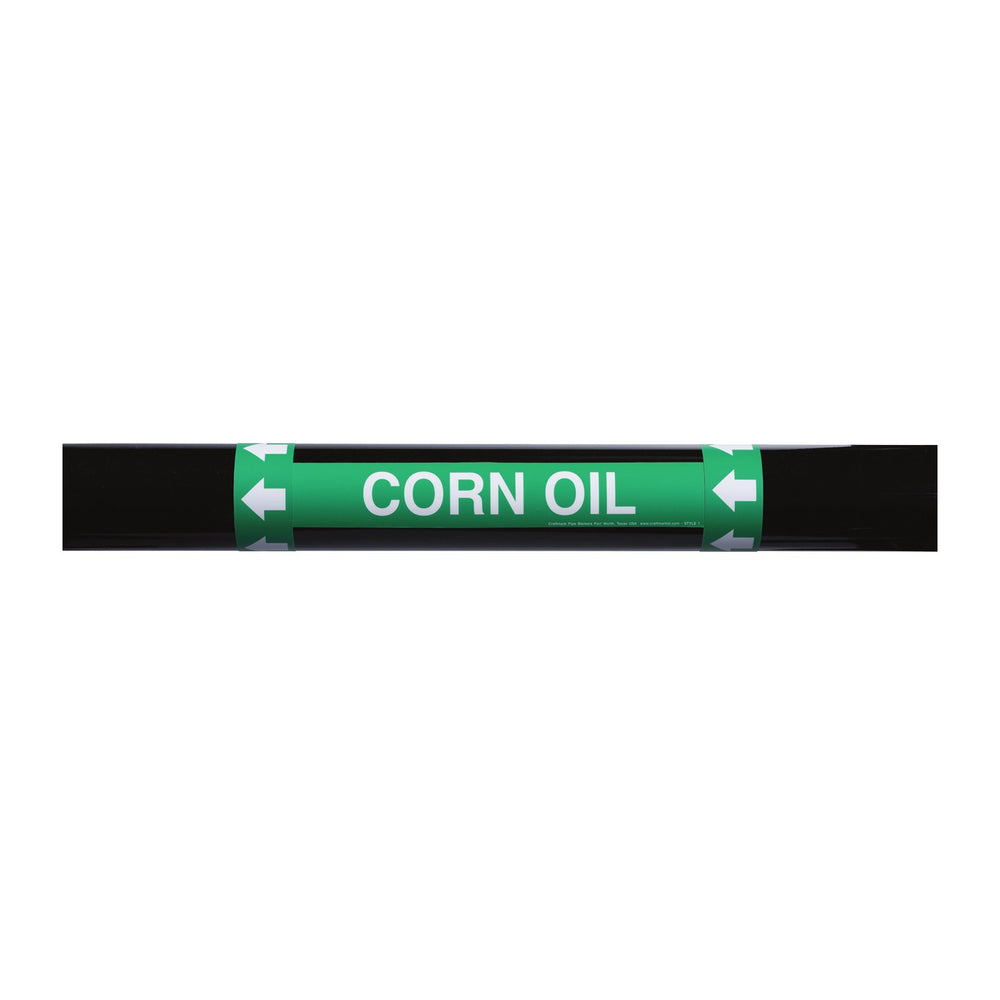

Food Industry Self-Stick Pipe Markers

CraftMark Food Industry Pipe Markers are made for areas that must be protected from bacteria growth and moisture hiding beneath other types of pipe markers. These ultra-durable markers are polyester with an ultra-aggressive adhesive that holds the marker tightly against the pipe, and they are laminated to resist abrasion, scuffing and wash downs. Available in stock legends and custom.

Order online

Request a quote

Custom legends, colors & logos
Proof sent for your approval
Stock & custom sizes
Order online or request a quote

Features

Meets ASME (ANSI) A13.1-2023 standard 100%
5 styles to fit piping from 3/4” to over 10”
65 stock legends plus custom legends
Ultra durable polyester overlaminate for excellent abrasion resistance
Holds up to wash downs
Ultra permanent acrylic adhesive holds the marker flat on the pipe to resist mildew behind the marker

Sizes

Style	Fits pipe OD	Marker size	Letter height
1XSM	.7” – 1.3”	.75” × 8”	.5”
1SM	1.4” – 2.4”	1.5” × 8”	.75”
1	2.5” – 6.7”	2.25” × 14”	1.3”
1LG	6.8” – 10”	4” × 24”	2.5”
1XL	Over 10”	4” × 32”	3.5”

Stock legend pricing

Style	1-99	100-249	250+
1XSM	$2.75	$2.35	$1.90
1SM	$2.75	$2.35	$1.90
1	$3.55	$3.00	$2.60
1LG	$5.85	$5.45	$4.95
1XL	$7.70	$7.00	$6.30

Custom legend pricing

Style	10-99	100-249	250+
1XSM	$3.30	$2.80	$2.25
1SM	$3.30	$2.80	$2.25
1	$4.25	$3.60	$3.10
1LG	$7.00	$6.50	$5.90
1XL	$9.20	$8.40	$7.50

Legends and sizes do not combine for price breaks. Custom legends have a 10 marker minimum.

Stock legends and stock numbers

Legend	Letter / background	1XSM	1SM	1	1LG	1XL
BOILER FEED WATER	Black on Gray	N900	N901	N902	N903	N904
BOILER FEED WATER	Black on Yellow	18001	18002	18003	18004	18005
BOILER FEED WATER*	White on Green	18006	18007	18008	18009	18010
CARBON DIOXIDE	Black on Yellow	18011	18012	18013	18014	18015
CARBON DIOXIDE*	White on Gray	18016	18017	18018	18019	18020
CHLORINE WATER	Black on Yellow	18021	18022	18023	18024	18025
CITY WATER	White on Green	18026	18027	18028	18029	18030
COLD POTABLE WATER	White on Green	18031	18032	18033	18034	18035
COMPRESSED AIR	White on Blue	18036	18037	18038	18039	18040
CONDENSATE DRAIN	White on Green	18041	18042	18043	18044	18045
CONDENSATE RETURN*	White on Green	18046	18047	18048	18049	18050
CONDENSATE RETURN*	Black on Yellow	18051	18052	18053	18054	18055
CONDENSER WATER RETURN	White on Green	18056	18057	18058	18059	18060
CONDENSER WATER SUPPLY	White on Green	18061	18062	18063	18064	18065
COOKING OIL	White on Green	18066	18067	18068	18069	18070
COOLING WATER RETURN	White on Green	18071	18072	18073	18074	18075
CORN OIL	White on Green	18076	18077	18078	18079	18080
DC LIQ AMMONIA HIGH	Black on Yellow	CM3	CM23	CM43	CM63	CM83
DOMESTIC COLD WATER	White on Green	18081	18082	18083	18084	18085
DOMESTIC HOT WATER	Black on Gray	N905	N906	N907	N908	N909
DOMESTIC HOT WATER	White on Green	18086	18087	18088	18089	18090
DRAIN	White on Green	18091	18092	18093	18094	18095
FRYING OIL DRAIN	White on Green	18096	18097	18098	18099	18100
FRYING OIL RETURN	White on Green	18101	18102	18103	18104	18105
FRYING OIL SUPPLY	White on Green	18106	18107	18108	18109	18110
GLYCOL	Black on Yellow	18111	18112	18113	18114	18115
GLYCOL RETURN	Black on Yellow	18116	18117	18118	18119	18120
GLYCOL RETURN*	Black on Orange	18121	18122	18123	18124	18125
GLYCOL SUPPLY	Black on Yellow	18126	18127	18128	18129	18130
GLYCOL SUPPLY*	Black on Orange	18131	18132	18133	18134	18135
GLYCOL*	Black on Orange	18136	18137	18138	18139	18140
HGD LIQ AMMONIA HIGH	Black on Yellow	CM6	CM26	CM47	CM66	CM86
HIGH PRESSURE STEAM	Black on Gray	N910	N911	N912	N913	N914
HIGH PRESSURE STEAM	Black on Yellow	18141	18142	18143	18144	18145
HIGH PRESSURE STEAM*	White on Green	18146	18147	18148	18149	18150
HI-PRESSURE WATER	White on Green	18151	18152	18153	18154	18155
HOT POTABLE WATER	Black on Gray	N915	N916	N917	N918	N919
HOT POTABLE WATER	White on Green	18156	18157	18158	18159	18160
HOT WATER RETURN	Black on Gray	N920	N921	N922	N923	N924
HOT WATER RETURN	Black on Yellow	18161	18162	18163	18164	18165
HOT WATER RETURN*	White on Green	18166	18167	18168	18169	18170
HOT WATER SUPPLY	Black on Gray	N925	N926	N927	N928	N929
HOT WATER SUPPLY	Black on Yellow	18171	18172	18173	18174	18175
HOT WATER SUPPLY*	White on Green	18176	18177	18178	18179	18180
HTRS LIQ VAP AMMONIA LOW	Black on Yellow	CM11	CM31	CM52	CM71	CM91
HTRL LIQ AMMONIA LOW	Black on Yellow	CM10	CM30	CM51	CM70	CM90
LSS VAP AMMONIA LOW	Black on Yellow	CM14	CM34	CM55	CM74	CM94
LTRL LIQ AMMONIA LOW	Black on Yellow	CM15	CM35	CM56	CM75	CM95
LTRS LIQ VAP AMMONIA LOW	Black on Yellow	CM16	CM36	CM57	CM76	CM96
NATURAL GAS	Black on Yellow	18181	18182	18183	18184	18185
NON-POTABLE WATER	White on Green	18186	18187	18188	18189	18190
NON-POTABLE WATER RETURN	White on Green	18191	18192	18193	18194	18195
NON-POTABLE WATER SUPPLY	White on Green	18196	18197	18198	18199	18200
OLIVE OIL	White on Green	18201	18202	18203	18204	18205
PACKING WATER	White on Green	18206	18207	18208	18209	18210
PACKING WATER RETURN	White on Green	18211	18212	18213	18214	18215
PACKING WATER SUPPLY	White on Green	18216	18217	18218	18219	18220
POTABLE WATER	White on Green	18221	18222	18223	18224	18225
POTABLE WATER RETURN	White on Green	18226	18227	18228	18229	18230
POTABLE WATER SUPPLY	White on Green	18231	18232	18233	18234	18235
SALAD OIL	White on Green	18236	18237	18238	18239	18240
SPRINKLER WATER	White on Red	18241	18242	18243	18244	18245
VACUUM	White on Blue	18246	18247	18248	18249	18250
VACUUM	White on Black	18251	18252	18253	18254	18255
VIRGIN OIL	White on Green	18256	18257	18258	18259	18260

* 2007 version ASME (ANSI) color code.

How to order

Choose a stock legend or a custom legend.
Pick the style that fits your pipe's outside diameter.
Select your stock legend from the list, or type your custom legend and choose colors.
Enter your quantity. The price per marker drops automatically at each quantity break.
