IMO A.654 Fire Control Plan Symbol Signs

Fire control symbol signs based on IMO Resolution A.654(16) – the graphical symbols used on shipboard fire control plans – so the equipment on board matches the plan. Fire doors, fire pumps, CO₂/foam/halon/powder systems, detectors, release stations and more.

Order online

Request a quote

Custom legends, colors & logos
Proof sent for your approval
Stock & custom sizes
Order online or request a quote

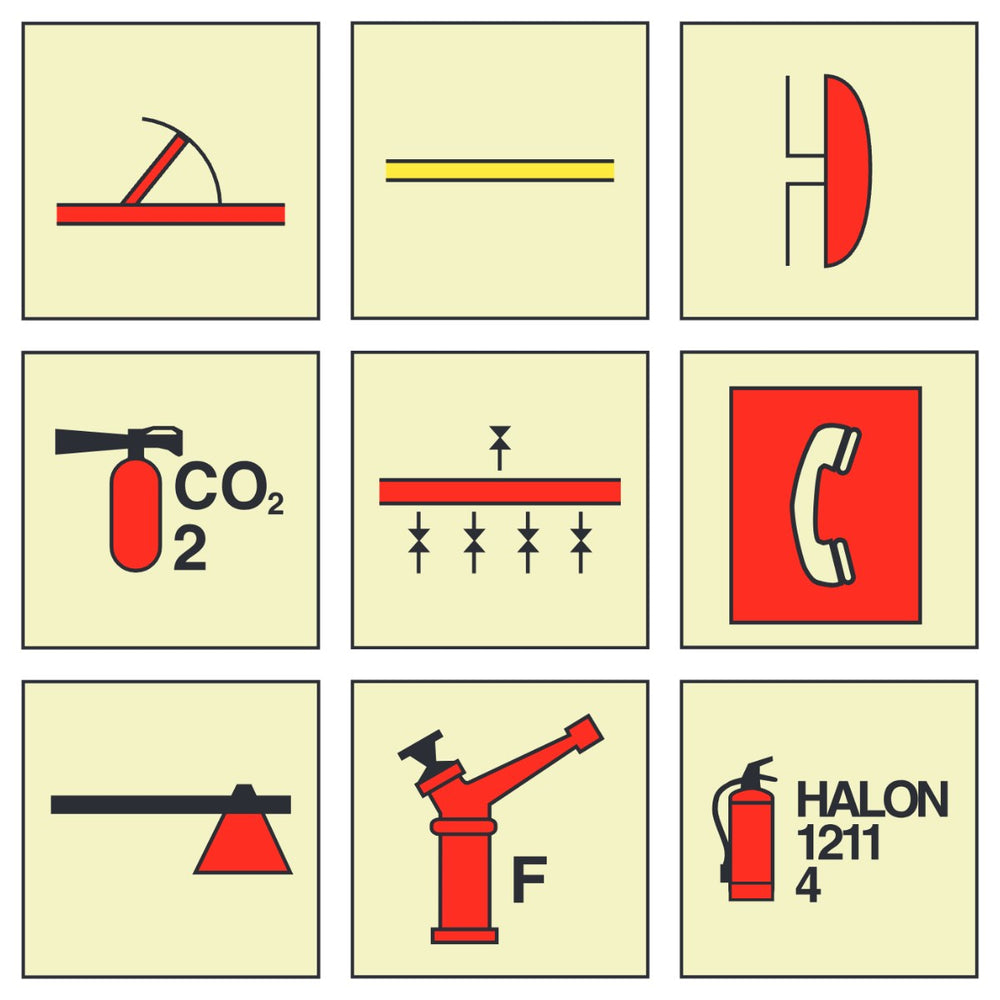

90 IMO A.654 fire control plan symbols, 150 × 150 mm
Match the symbols on your vessel's fire control plan
Photoluminescent – visible in smoke and blackout
Rigid fiberglass or self-stick

How to order

Choose your sign in the picker – search by name or stock number.
Pick a material – the full stock number (e.g. 1419-100) is added to your order automatically.
Enter a quantity and add to cart. Repeat for as many different signs as you need – they all go in one order.

Price per sign

Size	CM-100 Photoluminescent Rigid	CM-500 Photoluminescent Self-Stick
150 × 150 mm 5.9″ × 5.9″	$9.00	$5.40

Materials

CM-100 Photoluminescent Rigid – Photoluminescent (glow-in-the-dark) film laminated to a rigid 2.28 mm fiberglass base with a tough polyester overcoat. Non-toxic, UV, salt-water and abrasion resistant, mounted with strong adhesive foam strips that resist moisture and temperature swings. Stock # ends in -100.
CM-500 Photoluminescent Self-Stick – Outdoor-grade photoluminescent (glow-in-the-dark) film with an aggressive acrylic self-stick adhesive, protected by a clear polyester overcoat. Non-toxic, UV, salt-water and moisture resistant. Stock # ends in -500.

All 90 signs in this series

1419 “A” Class Hinged Fire Door (150 × 150 mm)
1420 “A” Class Hinged Self-Closing Fire Door (150 × 150 mm)
1421 “A” Class Division (150 × 150 mm)
1422 “A” Class Self-Closing Sliding Fire Door (150 × 150 mm)
1423 “A” Class Sliding Fire Door (150 × 150 mm)
1424 “B” Class Division (150 × 150 mm)
1425 “B” Class Hinged Fire Door (150 × 150 mm)
1426 “B” Class Hinged Self-Closing Fire Door (150 × 150 mm)
1427 “B” Class Sliding Fire Door (150 × 150 mm)
1428 “B” Class Self-Closing Sliding Fire Door (150 × 150 mm)
1429 Bell-Fire Alarm (150 × 150 mm)
1430 Bilge Pump (150 × 150 mm)
1431 Closing Appliance for External Ventilation Inlet or Outlet (150 × 150 mm)
1432 CO2 Battery (150 × 150 mm)
1433 CO2 Horn (150 × 150 mm)
1434 CO2 Fire Extinguisher (150 × 150 mm)
1435 CO2 Fire Extinguisher 2kg (150 × 150 mm)
1436 CO2 Fire Extinguisher 5kg (150 × 150 mm)
1437 CO2/Nitrogen Bulk Installation (150 × 150 mm)
1438 CO2 Release Station (150 × 150 mm)
1439 Control Stations (150 × 150 mm)
1440 Drenching Installation (150 × 150 mm)
1441 Emergency Bilge Pump (150 × 150 mm)
1442 Emergency Fire Pump (150 × 150 mm)
1443 Emergency Generator (150 × 150 mm)
1444 Emergency Switchboard (150 × 150 mm)
1445 Emergency Telephone Station (150 × 150 mm)
1446 Fire Alarm Panel (150 × 150 mm)
1447 Fire Damper in Vent Duct (150 × 150 mm)
1448 Fire Main With Valves (150 × 150 mm)
1449 Fire Pump (150 × 150 mm)
1450 Fire Axe (150 × 150 mm)
1451 Fire Plan (150 × 150 mm)
1452 Fire Station (150 × 150 mm)
1453 Flame Detector (150 × 150 mm)
1454 Foam Fire Extinguisher 9kg (150 × 150 mm)
1455 Foam Insulation (150 × 150 mm)
1456 Foam Monitor Gun (150 × 150 mm)
1457 Foam Nozzle (150 × 150 mm)
1458 Foam Release Station (150 × 150 mm)
1459 Foam Valve (150 × 150 mm)
1460 Gas Detector (150 × 150 mm)
1461 Halon 1211 Fire Extinguisher 4kg (150 × 150 mm)
1462 Halon 1301 Battery (150 × 150 mm)
1463 Halon 1301 Bottles in Protected Area (150 × 150 mm)
1464 Halon Horn (150 × 150 mm)
1465 Halon Release Station (150 × 150 mm)
1466 Heat Detector (150 × 150 mm)
1467 High Expansion Foam Supply Trunk (150 × 150 mm)
1468 Horn Fire Alarm (150 × 150 mm)
1469 Hose Box with Spray/Jet (150 × 150 mm)
1470 Inert Gas Installation (150 × 150 mm)
1471 International Shore Connection (150 × 150 mm)
1472 Locker with Additional Protective Clothing (150 × 150 mm)
1473 Locker with Additional Breathing Apparatus (150 × 150 mm)
1474 Locker with Fireman Equipment (150 × 150 mm)
1475 Manually Operated Call Point (150 × 150 mm)
1476 Main Vertical Zone (150 × 150 mm)
1477 Portable Foam Applicator (150 × 150 mm)
1478 Push Button/ Switch for Fire Alarm (150 × 150 mm)
1479 Powder Fire Extinguisher (150 × 150 mm)
1480 Powder Fire Extinguisher 1kg (150 × 150 mm)
1481 Powder Fire Extinguisher 2kg (150 × 150 mm)
1482 Powder Fire Extinguisher 6kg (150 × 150 mm)
1483 Powder Hose and Hand Gun (150 × 150 mm)
1484 Powder Installation (150 × 150 mm)
1485 Powder Monitor Gun (150 × 150 mm)
1486 Powder Release Station (150 × 150 mm)
1487 Primary Means of Escape (150 × 150 mm)
1488 Remote Controlled Fire Pumps or Emergency Switches (150 × 150 mm)
1489 Remote Controlled Fuel/ Lubricating Oil Valves (150 × 150 mm)
1490 Remote Controlled Skylights (150 × 150 mm)
1491 Remote Ventilation Shutoff (150 × 150 mm)
1492 Secondary Means of Escape (150 × 150 mm)
1493 Section Valves Drenching (150 × 150 mm)
1494 Smoke Detector (150 × 150 mm)
1495 Space Protected by Automatic Fire Alarm (150 × 150 mm)
1496 Space protected by CO2 (150 × 150 mm)
1497 Space Protected by Drenching System (150 × 150 mm)
1498 Space Protected by Foam (150 × 150 mm)
1499 Space Protected by Halon 1301 (150 × 150 mm)
1500 Space Protected by Sprinkler (150 × 150 mm)
1501 Sprinkler Horn (150 × 150 mm)
1502 Sprinkler Installation (150 × 150 mm)
1503 Sprinkler Section Valve (150 × 150 mm)
1504 Water Fog Applicator (150 × 150 mm)
1505 Water Monitor Gun (150 × 150 mm)
1506 Wheeled CO2 Fire Extinguisher 30kg (150 × 150 mm)
1507 Wheeled Foam Fire Extinguisher 45L (150 × 150 mm)
1508 Wheeled Powder Fire Extinguisher 50kg (150 × 150 mm)

Need a size, wording or language that isn’t listed? Request a quote – Craftmark has made marine markers since 1959. See all marine & IMO safety signs.
